The dry granulator is a kind of equipment that directly processes materials from powder to particles without adding water, mixing, granulating, drying and other intermediate processes. According to the material conveying mode, the dry granulator can be divided into two forms: vertical conveying and horizontal conveying. The horizontal conveying dry granulator has advanced technology and stable performance,

The granulation rate is high, and the dry granulation machine produced by our company is a horizontal feeding type.

Compared with other granulation equipment, the dry granulation machine has the following characteristics:

1. Direct granulation of dry powder without the need for any binder;

2. The material is mechanically extruded without damaging its chemical properties or reducing the effective content of the product;

3. The pressure wheel is arranged vertically, eliminating the influence of gravity on the material and ensuring the uniformity of the material before pressing;

4. The gap between the pressing wheels can be adjusted to ensure consistent tablet density and even granulation;

5. Low energy consumption and small footprint;

6. High granulation rate and high production efficiency;

7. Equipped with hydraulic system, the hardness and density of particles can be adjusted;

8. The device has a simple structure and is easy to disassemble and clean;

9. Equipped with a vacuum device to make the tablet more compact and achieve a high granulation rate;

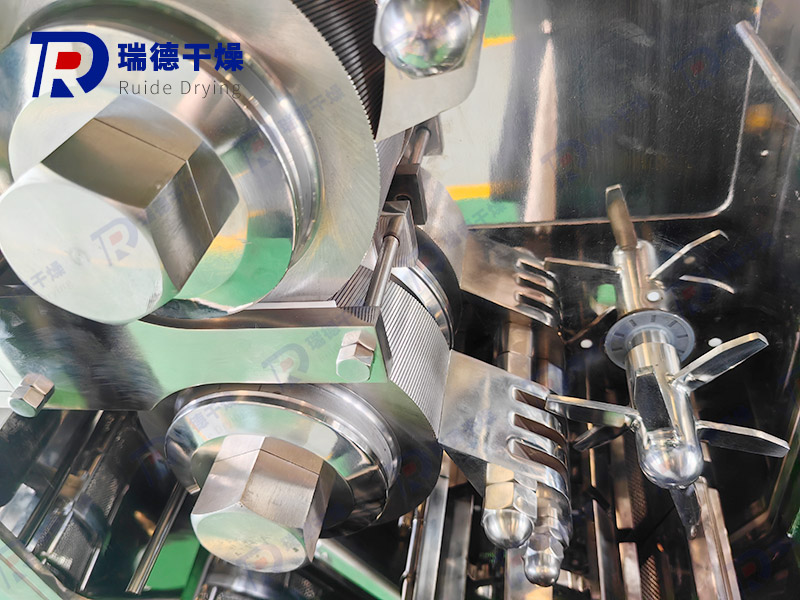

10. Equipped with three types of textured rollers: mesh, straight, and smooth, to match materials with different characteristics;

11. The control system is equipped with a memory that can store millions of sets of production data;

12. The equipment is controlled by PLC, with a beautiful and simple human-machine interface, easy to operate, and simple to learn.

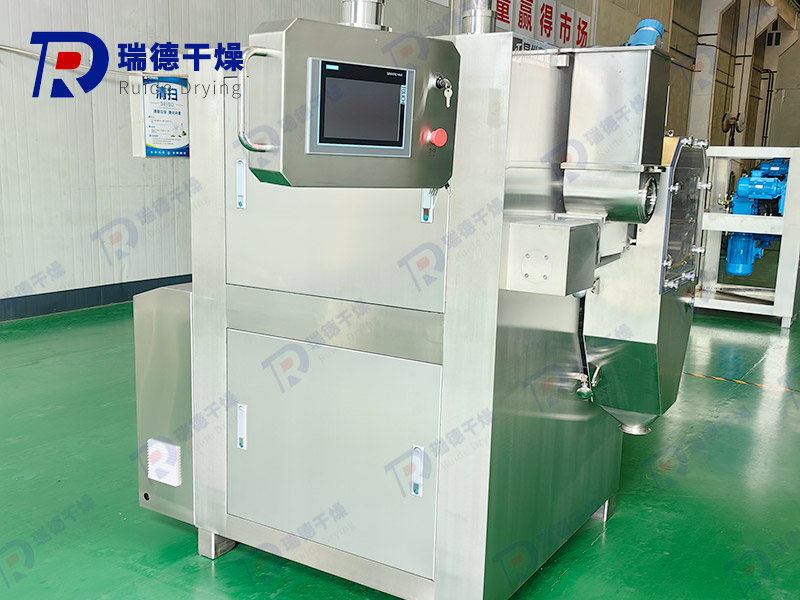

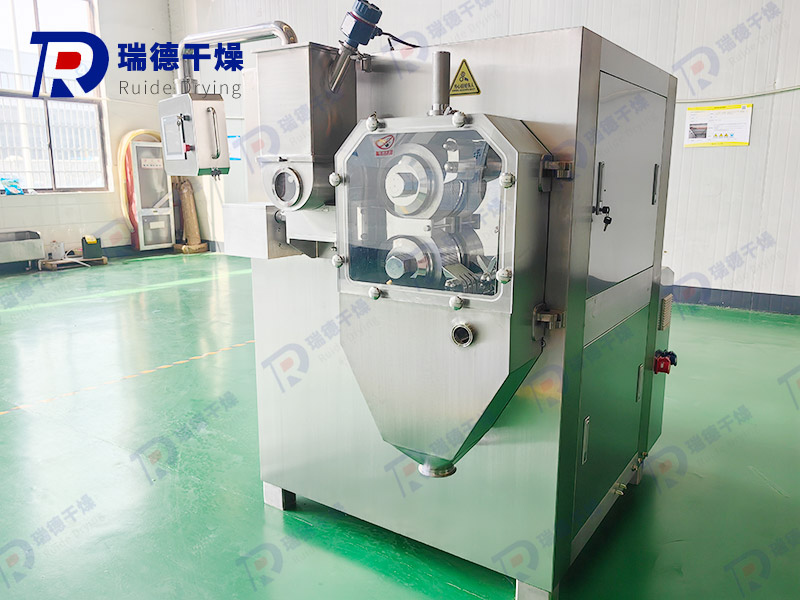

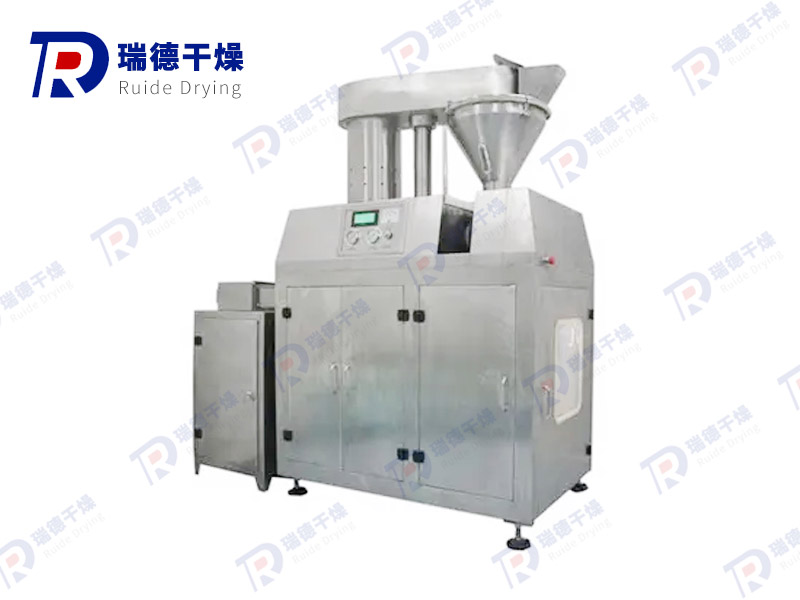

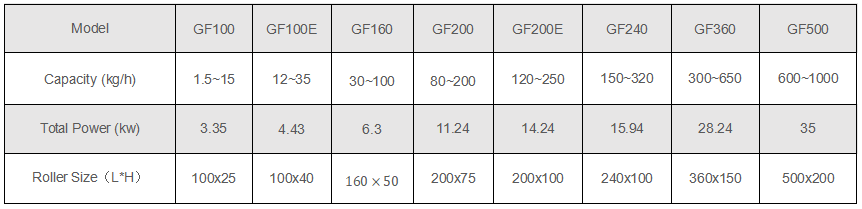

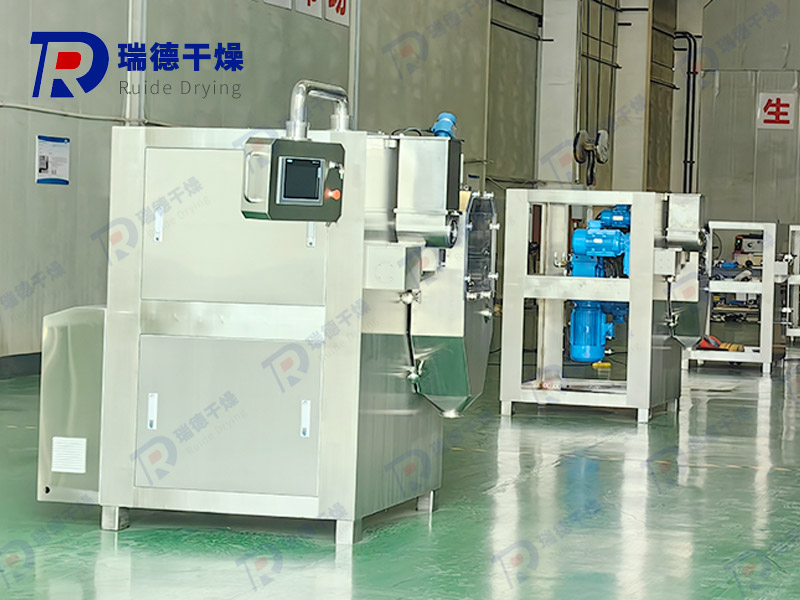

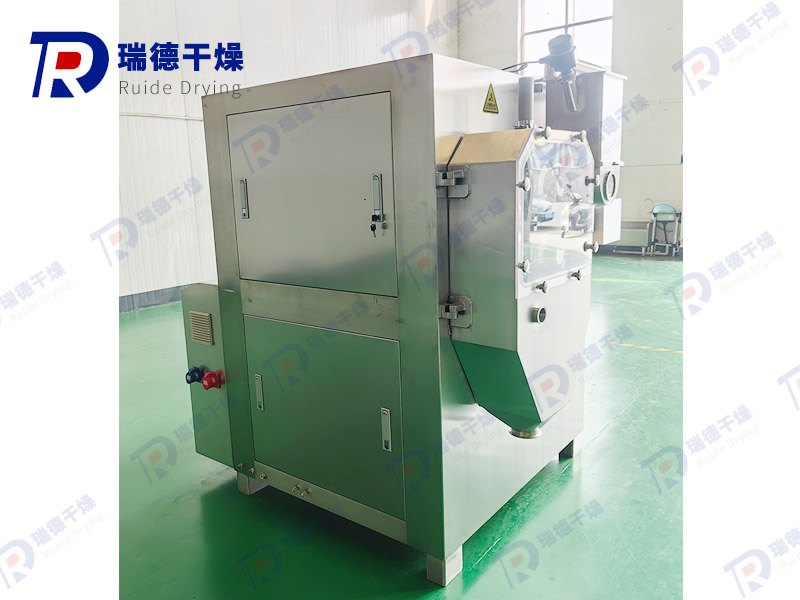

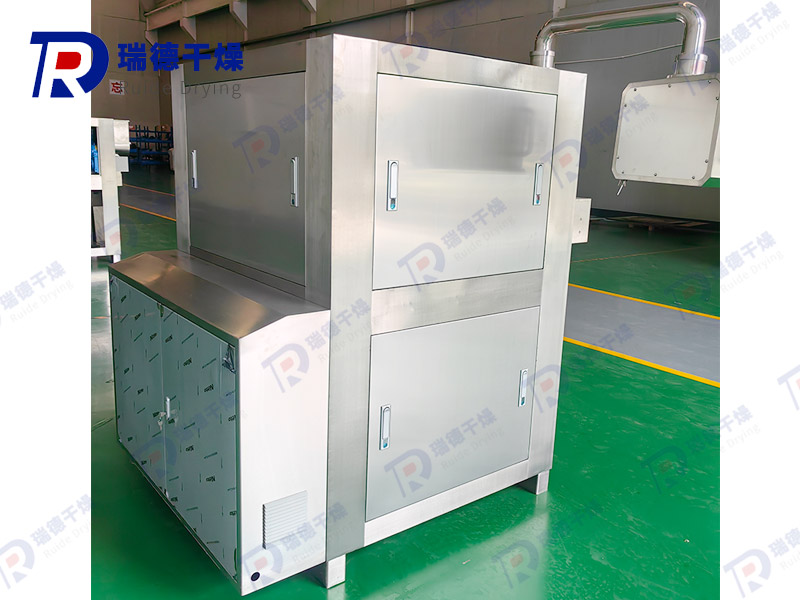

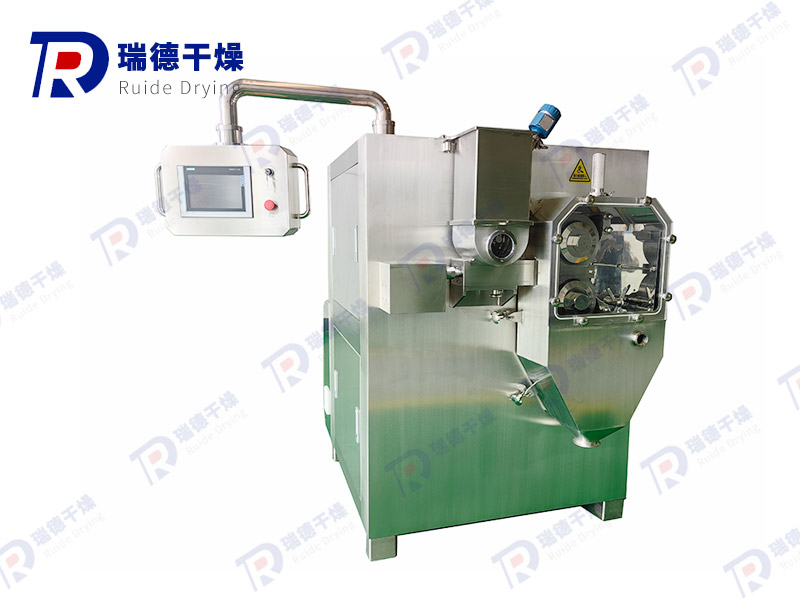

The GF series dry granulation machine is a technologically advanced, economical and environmentally friendly product carefully developed by our company. The equipment occupies a small area, is energy-saving and environmentally friendly, and is easy to disassemble and clean. It is an ideal production equipment for large-scale granulation. The equipment mainly consists of the following parts:

1. Feeding system; 2. Deceleration and steering system; 3. Material conveying device; 4. Squeezing system; 5. Whole grain system; 6. Front cover; 7. Rack;

    8. Maintenance door; 9. Control system; 10. Hydraulic system; 11. Pneumatic system; 12. Water cooling system; 13. Vibration device
