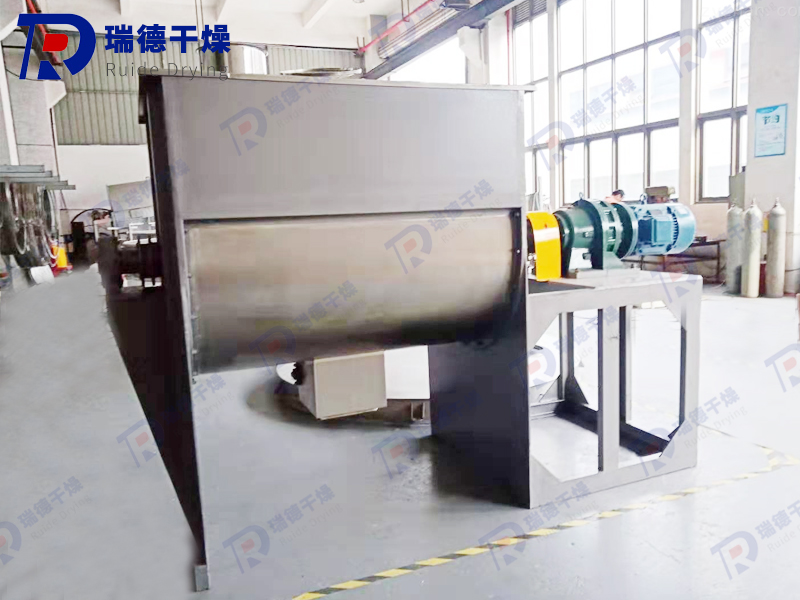

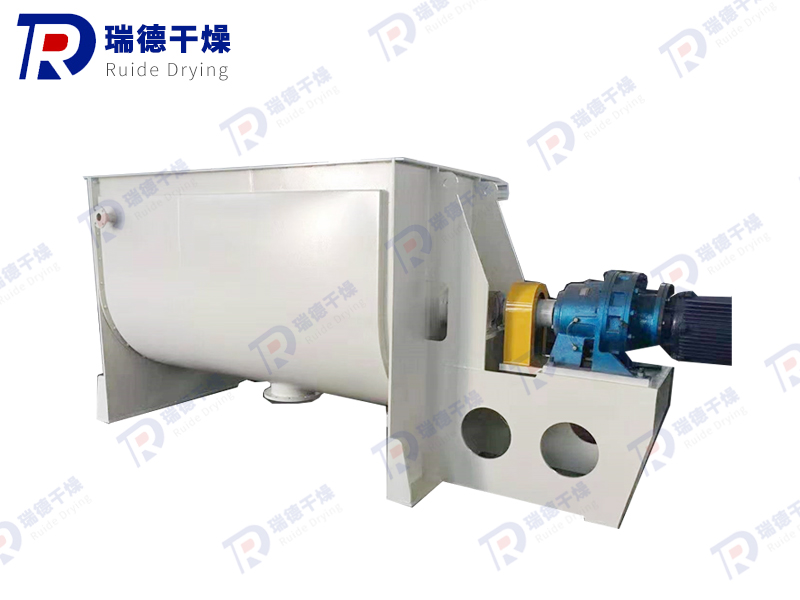

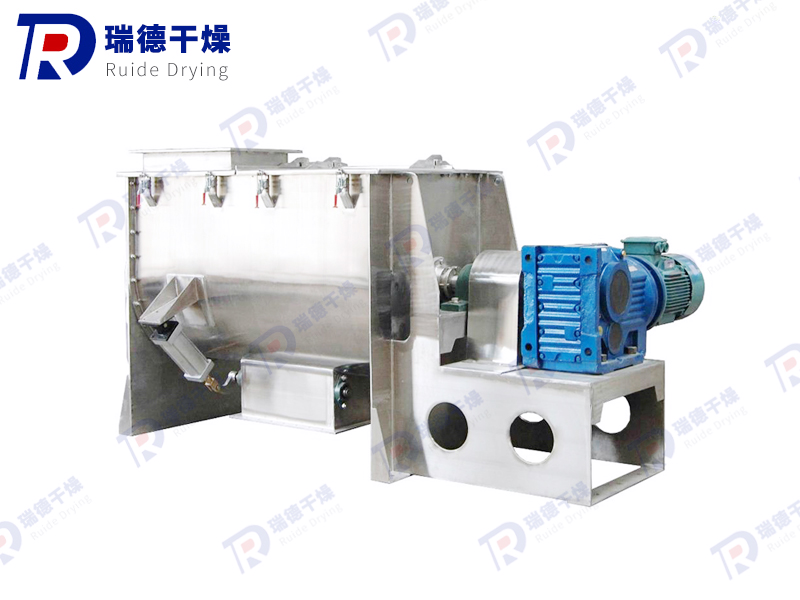

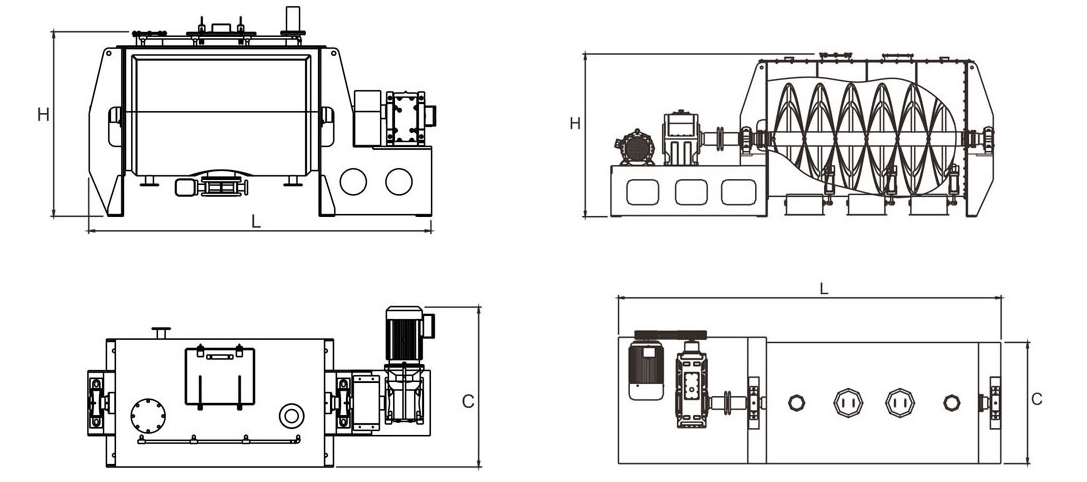

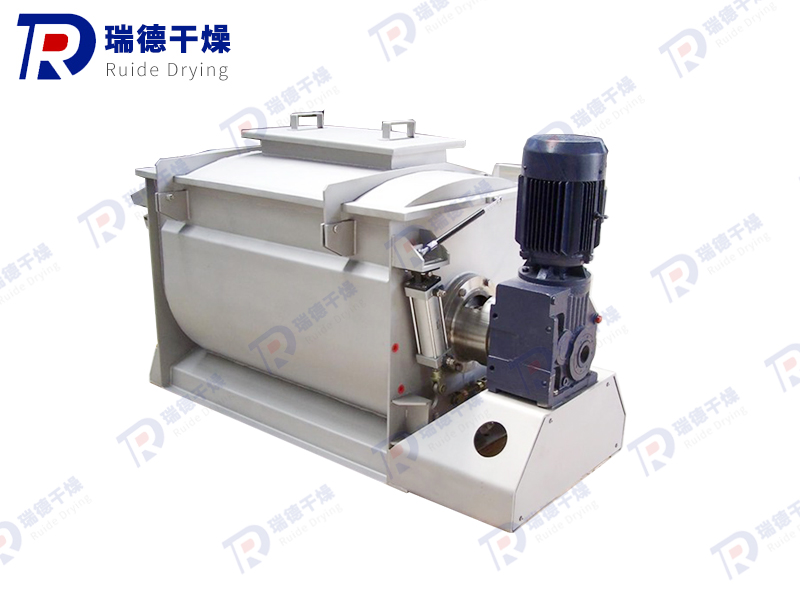

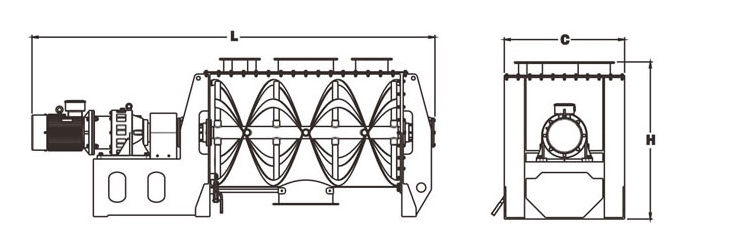

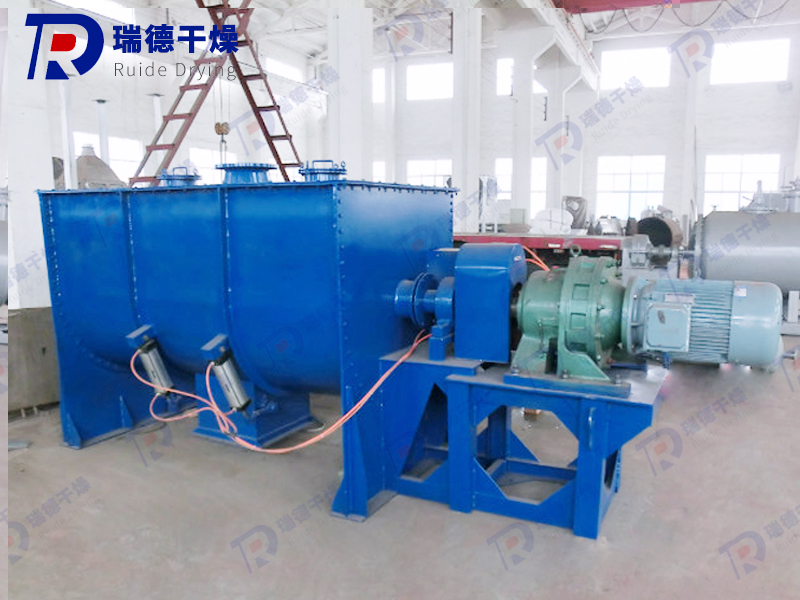

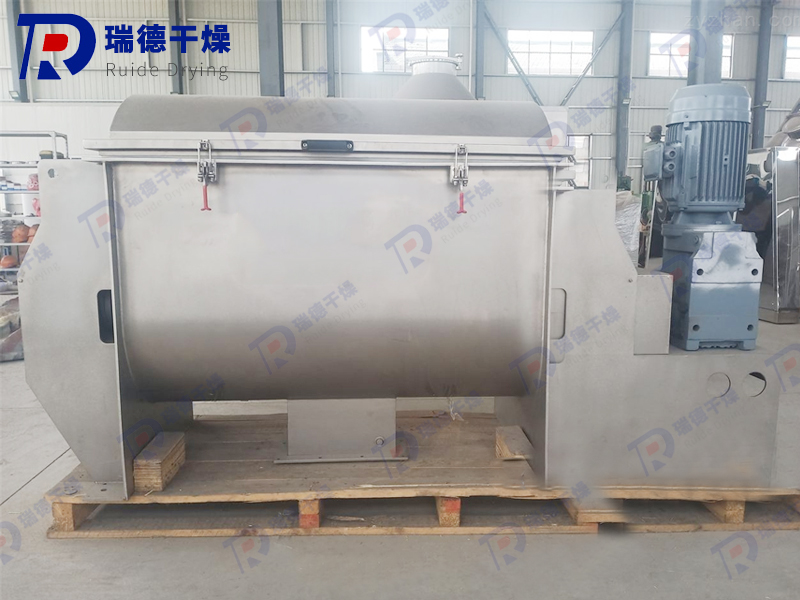

This model consists of a container, spiral stirring blades, and transmission components: the spiral blades are generally made into double or triple layers, with the outer layer of spiral collecting materials from both sides to the center, and the inner layer of spiral conveying materials from both sides of the center, forming convective mixing.

1、 Large loading coefficient, small equipment footprint:

2、 When mixing viscous or cohesive materials, cleaning is difficult.

Ribbon mixer is generally used for the mixing of viscous or cohesive powder particles and the mixing of liquid and paste materials in the powder particles, and due to the characteristics of difficult cleaning of viscous materials, it is suitable for mixing occasions with large output and not often changing varieties.
