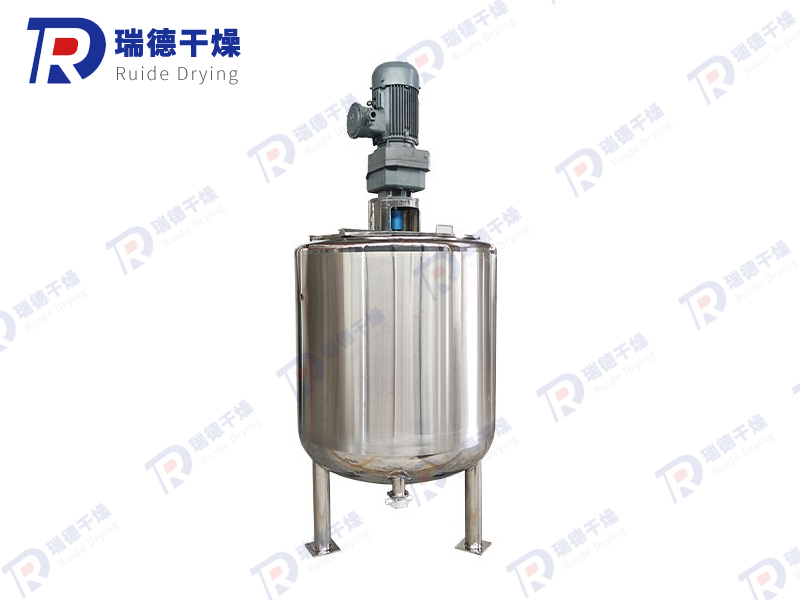

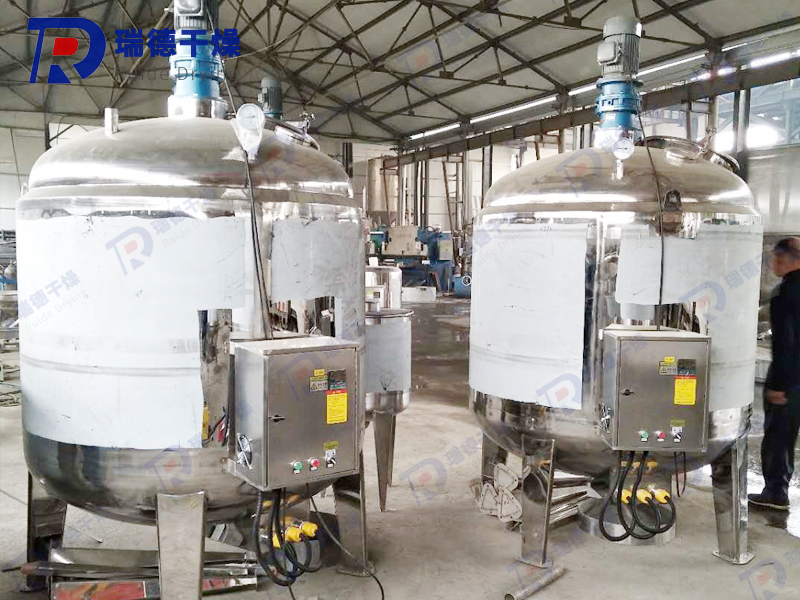

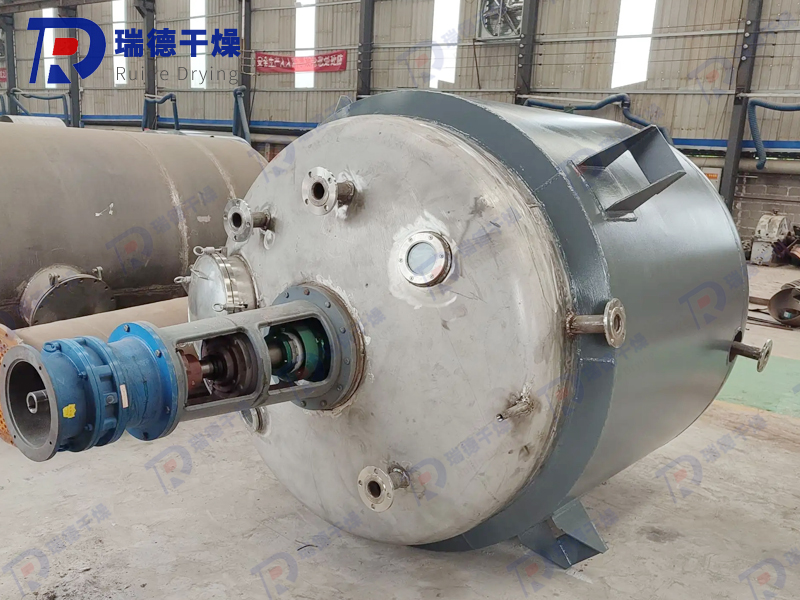

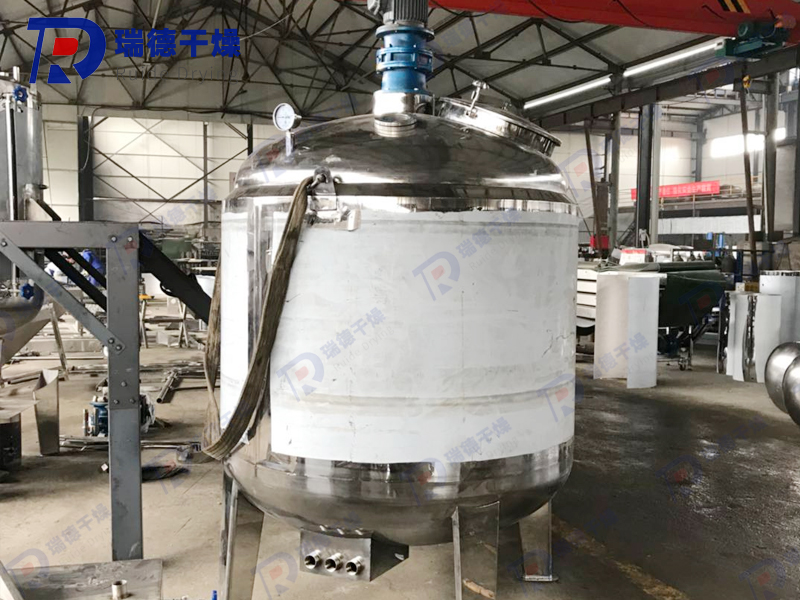

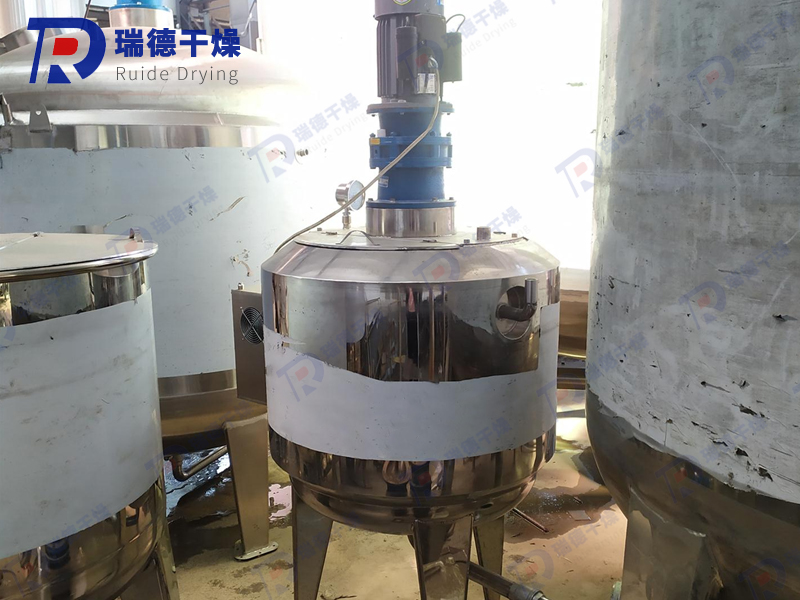

The upper and lower seals of the stainless steel dissolution tank are disc-shaped, and axial flow stirring is used. The top of the tank is equipped with an inlet, a feeding port, a reflux port, a disinfection port, a cleaning ball, a manhole, and a 0.22 μ m air respirator and stirring system. The bottom of the tank is equipped with a water outlet, a sewage outlet, a sampling port, a temperature probe, and a liquid level sensor. Can be equipped with a control cabinet for operation, detecting and displaying the temperature of the medicine solution, conducting constant temperature control liquid level testing and display, and providing functions such as up and down alarms.

Dissolving tank parameter model:      LP1000   LP2000   LP3000   LP5000    LP10000

Dissolving tank equipment capacity:  1000       2000        3000       5000      10000/(L)

Inner liner working pressure:              0.2MPa

Working pressure of jacket:                0.3MPa

Dissolving tank motor power:            1.1           1.2             1.5        3.0/(KW)

Impeller speed:                                  0-200/min

External diameter size:                       1400       1580           1800      2050

Heat exchange area:                          4.5          7.5               8.6        10.4      20.2/(㎡)
